Description

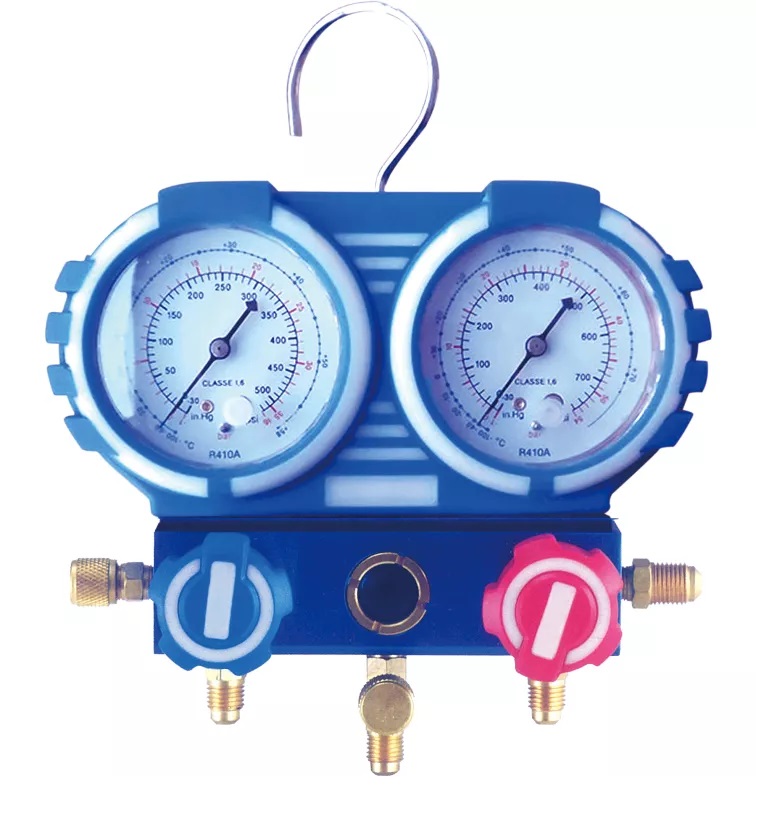

High Quality OEM Single or Double Valve Refrigerant Manifold Pressure Gauge
| Single Gauge Manifold Valve | |||||||
 |
 |
 |
 |
||||
| Item | FF-466G | FF-473G | FF-467G | FF-466G | FF-471G | FF-488G | FF-472G |
| Refrigerant | R12, R22, R502, R134a, R410a | ||||||
| Gauge Diameter | 68mm/80mm | ||||||
| Connection | 1/4″SAE | ||||||
| Sight Glass | without | without | with | ||||
| Package | Box Packing | ||||||
| Double Gauge Manifolds Sets | ||||||
 |
 |
 |
||||
| Item | FF-2S-BC | FF-2S-M | FF-2S-N | FF-2S-QC | FF-2S-LT | FF-4S-LTB |
| Refrigerant | R12, R22, R502, R134a, R410a | |||||
| Gauge Diameter | 68mm | 80mm | ||||
| Connection | 1/4″SAE | 1/4″SAE | 1/4″SAE* 5/16″SAE |
1/4″SAE | 1/4″SAE | 1/4″SAE* 5/16″SAE |
| Sight Glass | with | with | with | with | with | with |
| Hose | RED&BLUE&YELLOW 1/4″-1/4″ 3*1PC | |||||
| RED&BLUE 1/4″-5/16″ 2*1PC YELLOW 1/4″-1/4″ 1PC | ||||||
| Hose Length | 36″ 60″ 72″ | |||||
| Package | Blow Case | Box Packing | Box Packing | Blow Case | Box Packing | Box Packing |
| Lateste New Models | ||||||
| Built in 9 Refrigerant Gas: R22,R32,R290,R410A,R1234yf,R134a,R404a,R407c and R507 Pressure Display: psi bar Kpa Mpa kg/cm2 Temperature Display: oC oF Valuum Display: inHg Sensing Accuracy: 0.75%FS Sensing Resolution: 1psi Hose: RED&BLUE 1/4″-5/16″ 2*1PC YELLOW 1/4″-1/4″ 1PC Package: Blow Case
|
 |
|||||
